GATTA-PAINT HIRES 80 纳米标尺

Nanorulers from the GATTA-PAINT HiRes series serve all advantages of the classical GATTA-PAINT nanorulers. Additionally, they include special DNA-PAINT based fiducial markers for a precise and reliable drift correction. These fiducial markers outclass common fiducial markers based on fluorescent beads by having a stable connection to the surface and emitting a signal which does neither bleach nor exceed the detector’s dynamic range.

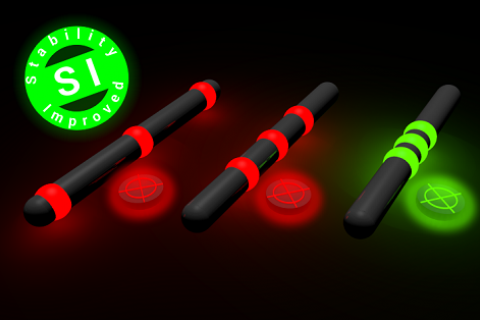

For the GATTA-PAINT HiRes nanorulers we offer the mark-to-mark distances in the sizes 20 nm, 40 nm and 80 nm. Each size is available in the colors red (ATTO 655) or green (ATTO 542).

On request we can also design special solutions for your specific requirements. All samples will be delivered on a sealed glass slide which you can comfortably put directly on your microscope.

产品特性

GATTA-PAINT HIRES 80 纳米标尺

	GATTA-PAINT HiRes 80R	GATTA-PAINT HiRes 80G
颜色	红	绿
荧光染料	ATTO 655	ATTO 542
激光源	625 - 665 nm	530 - 560 nm
表面染料密度 Fiducial Marker	≈ 0,1/µm²	≈ 0,1/µm²
表面染料密度 PAINT 纳米标尺	≈ 1/µm²	≈ 1/µm²
PAINT 纳米标尺 间 距	2x 80 nm	2x 80 nm
水平	Beginner	Beginner

产品 特性 GATTA-PAINT HIRES 40

	GATTA-PAINT HiRes 40R	GATTA-PAINT HiRes 40G
颜色	红	绿
荧光染料	ATTO 655	ATTO 542
激光源	625 - 665 nm	530 - 560 nm
表面染料密度 Fiducial Marker	≈ 0,1/µm²	≈ 0,1/µm²
表面染料密度 PAINT 纳米标尺	≈ 1/µm²	≈ 1/µm²
PAINT 纳米标尺 间 距	2x 40 nm	2x 40 nm
水平	Advanced	Advanced

产品 特性 GATTA-PAINT HIRES 20

	GATTA-PAINT HiRes 20R	GATTA-PAINT HiRes 20G
颜色	红	绿
荧光染料	ATTO 655	ATTO 542
激光源	625 - 665 nm	530 - 560 nm
表面染料密度 Fiducial Marker	≈ 0,1/µm²	≈ 0,1/µm²
表面染料密度 PAINT 纳米标尺	≈ 1/µm²	≈ 1/µm²
PAINT 纳米标尺 间 距	2x 20 nm	2x 20 nm
水平	Expert	Expert

Beginner: Samples to check the basic functions of your microscope. Easy to resolve, also for beginners in the field of super-resolution microscopy.

Advanced: Samples to optimize the settings of your microscope. Advanced experience is necessary in order to resolve the nanorulers.

Expert: Samples which demand perfectly aligned microscopes and very experienced users which are able to optimize acquisition and data evaluation.

荧光团性质

荧光团	颜色定义	激发波长/nm	发射波长/nm
ATTO 655	R	655	680
ATTO 542	G	542	562
